มอเตอร์สั่น 1500 rpm Three Phase 380 V. 4 Pole OLI รุ่น MVE/15 (Made in ITALY)
มอเตอร์สั่น 1500 rpm Three Phase 380 V. 4 Pole OLI รุ่น MVE/15 (Made in ITALY)
- มอเตอร์สั่น 1500 rpm Three Phase 380 V. 4 Pole OLI รุ่น MVE/15 (Made in ITALY)
- มีหลายขนาดให้เลือก 0.04 – 11.5 KW. ปรับแรงสั่นได้, เพลาโลหะผสมทนทาน
- พร้อม อุปกรณ์ป้องกันมอเตอร์ร้อนจัด PTC thermistore 130 C
- frame size 10 – 50 โครง-ฝาครอบอลูมิเนียม, Ball Bearing
- frame size 60 – 90 โครงเหล็กหล่อ ฝาครอบเหล็ก, Roller Bearing

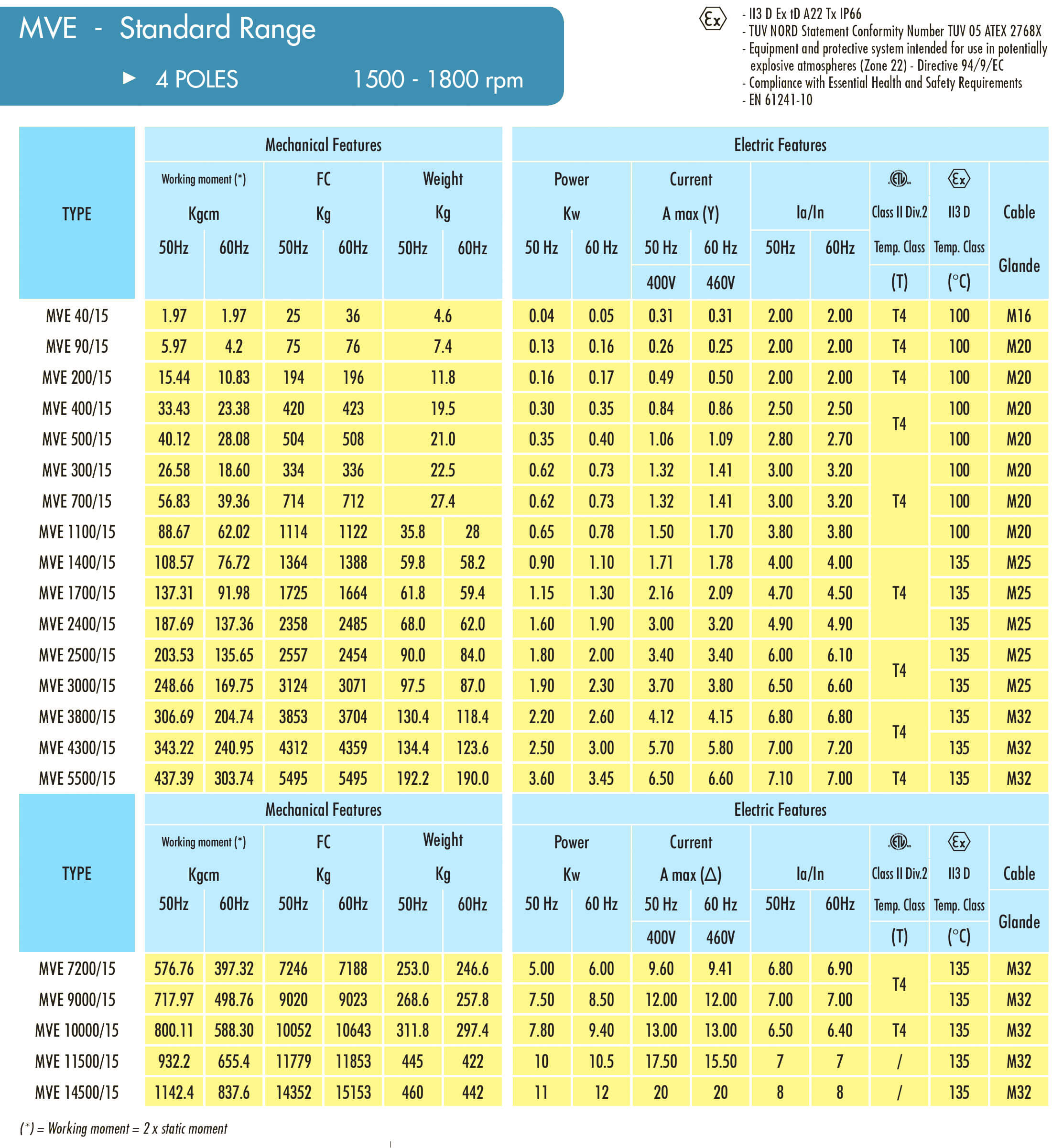

| Vibrator : OLI Italy |
| MVE Standard Range 4 POLES |
| 1500 rpm 50 Hz |
| Model | KW | SIZE | FORCE (kg) | ราคา |
| MVE 40/15 | 0.04 | 10 | 25 | 5,000 |
| MVE 90/15 | 0.12 | 20 | 75 | 8,500 |
| MVE 200/15 | 0.16 | 30 | 194 | 95,000 |
| MVE 400/15 | 0.30 | 40 | 420 | 11,400 |
| MVE 500/15 | 0.35 | 40 | 504 | 13,700 |
| MVE 700/15 | 0.62 | 50 | 714 | 15,500 |
| MVE 1100/15 | 0.65 | 50 | 1114 | 20,000 |
| MVE 1400/15 | 0.90 | 60 | 1364 | 28,000 |
| MVE 1700/15 | 1.15 | 60 | 1725 | 30,000 |
| MVE 2400/15 | 1.60 | 60 | 2358 | 35,000 |
| MVE 2500/15 | 1.80 | 70 | 2557 | 37,500 |
| MVE 3000/15 | 1.90 | 70 | 3124 | 43,000 |
| MVE 3800/15 | 2.20 | 75 | 3853 | 70,000 |
| MVE 4300/15 | 2.50 | 75 | 4312 | 72,000 |
| MVE 5500/15 | 3.60 | 80 | 5495 | 113,000 |
| MVE 7200/15 | 5.00 | 85 | 7246 | 128,000 |
| MVE 9000/15 | 7.50 | 85 | 9020 | 134,000 |
| MVE 10000/15 | 7.80 | 90 | 10052 | 192,000 |
| MVE 11500/15 | 9.00 | 100 | 11779 | 260,000 |
| MVE 14500/15 | 11.50 | 100 | 14352 | 270,000 |
คุณสมบัติ OLI Motor Vibrator
- FRAME:
Aluminium frame from size 10 to 50 and ductile cast iron from size 60 to 110. - TERMINAL PLATE:
M5 from size 10 to 50, M6 from size 60 to 90, M8 from size 100 to 105 M10 from size 110. - CABLE GLANDS:
Plastic M16 and M20 from size 10 to 50 and metal M25 and M32 from size 60 to 110. - FLANGE:
Gray cast iron from size 10 to 90, ductile cast iron from size 100 to 110. - WINDINGS:
2,4,6 and 8 poles three-phase asynchronous motor from size 10 to 110; 2 poles single phase from size 10 to 30. All motors are vacuum impregnated (VPI SYSTEM); PTC thermistore 130°C standard from size 60; Class F (155°C); continuous service (S1). - SHAFT:
Steel alloy high resistant to stress. - ECCENTRIC WEIGHTS:
Completely adjustable; the scale express the centrifugal force as a percentage of the maximum centrifugal force. - BEARING:
Ball bearing from size 10 to 50, roller bearing from size 50 (for some types only) to 90 (C3 clearance). Roller bearing from size 100 to 110 (C4 clearance). - COVER
Aluminium from size 10 to 50 and steel from size 60 to 90. Aluminium from size 100 to 110. Stainless steel AISI 304 for direct current motovibrators. For explosion proof range, all the covers are made of stainless steel. - SURFACE TREATMENT
Polyester powder painting. Standard colour RAL 2009.
Power supply
- Three-phase from 12V to 690V, 50Hz or 60Hz;
- Single phase 110V 60Hz and 220V 50Hz.
- All motors are designed for inverter application from 20Hz to base frequency
Conformity with European Directive
- Low voltage 2006/95/EC
- EMC 2004/108/EC
- Machine directive 2006/42/EC
- ATEX 94/9/EC Mechanical protection IP66 according to EN 60529
| ยี่ห้อ | OLI |
|---|
